3DSteroid - Stereoscopic image viewer & editor

Introduction

3DSteroid is a stereoscopic 3D photo app that lets Android users view, edit, and capture stereo images with ease. It supports display modes like side-by-side, anaglyph (red-blue glasses), mirror, wiggle, 2D, and even 3D LCD (on certain devices). Simple gestures enable zooming, swapping, rotating, and aligning left/right images for accurate 3D adjustment. The app also allows stereo photo capture and slideshow playback. The Pro version adds features such as high-resolution saving, auto-alignment, cropping, panoramas, and multi-frame wiggle. Actively updated, 3DSteroid remains a versatile choice for hobbyists and professionals exploring depth photography on mobile devices.

Warning

Following version 4.20, there have been specific changes in specifications for devices running Android 11 or newer.

1.Files with a 3D format, such as MPO files, are no longer supported for loading.

2.The storage location for photos and edited files has now been updated to the \Picture directory.

3.Files that were not created by this application cannot be removed. (Please utilize a different file management app to delete these files.)

Since version 4.00, previous models of Sharp, HTC, LG, and GADMEI 3D LCDs are no longer compatible. Avoid installation on these devices.

Features

[3DSteroid] is an app designed for stereoscopic viewing on Android devices.

- Automatic alignment for left/right images

- Supported input formats: left/right independent, side-by-side, MPO

- Access to more than 1000 images in a web gallery

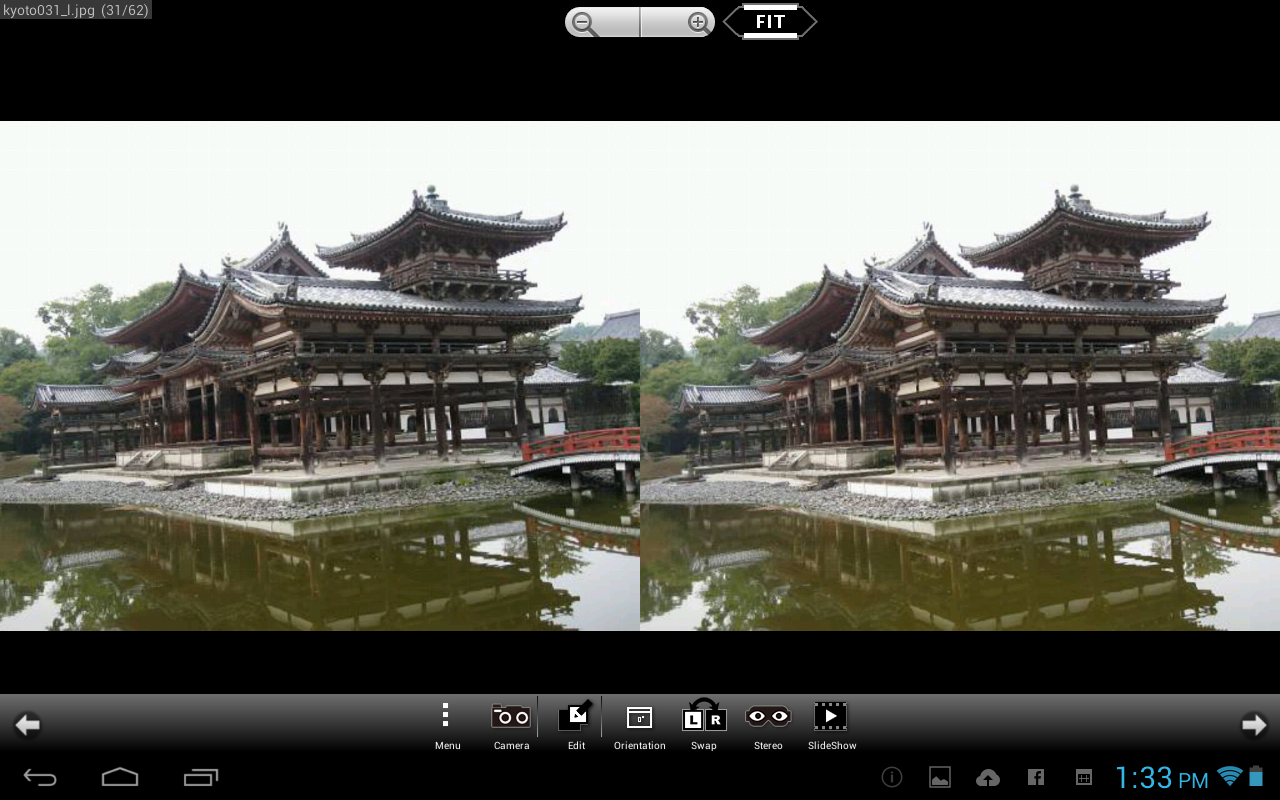

- Supported display options: 3D LCD (Freevi/PPTV/etc), side-by-side, mirror, wiggle, 2D, anaglyph

- Slideshow functionality

- Capture left/right images using the built-in camera.

- Modification of left/right image positioning, rotational discrepancies, and size discrepancies.

- Additional features available

Setting

Jpeg Quality : Set the Jpeg quality(Camera / Save) 30-100

Screen Orientation:Select screen orientation(Landscape or default)

Camera autofocus mode : Check this if you want to use the autofocus mode.

Camera Zoom : Check this if you want to use the camera zoom.

Show/Hide Grid:Show/Hide grid in Camera and Adjust mode.

Slide Show interval : Set the Slide Show interval(sec.)

Control buttons show time: Set the control buttons show time

Image zoom : Use or don't use the image zoom function.

Paging buttons:Show/Hide paging buttons.

Show/Hide file name:Show/Hide file name and wiggle info.

Mail Mode : Check this if you want to send the saved image by email.

Input Email Address : Input email address.

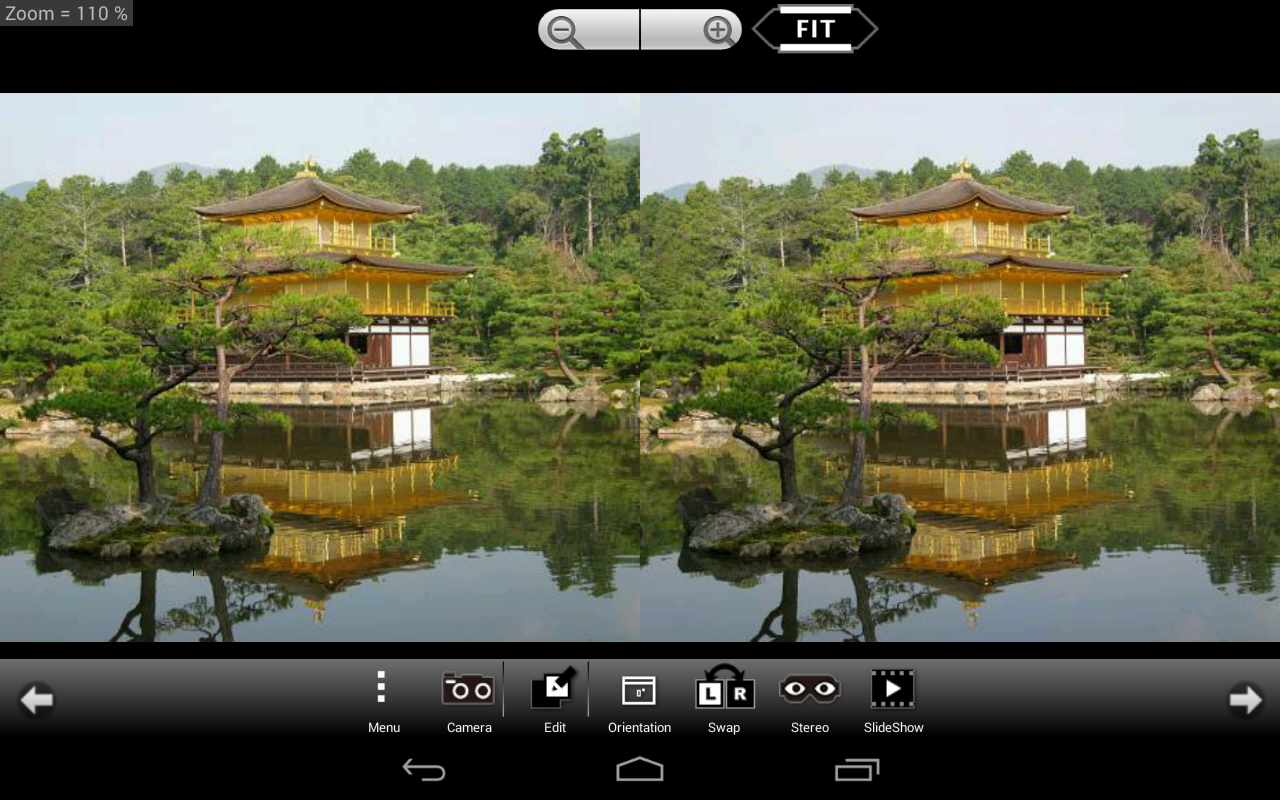

Control buttons

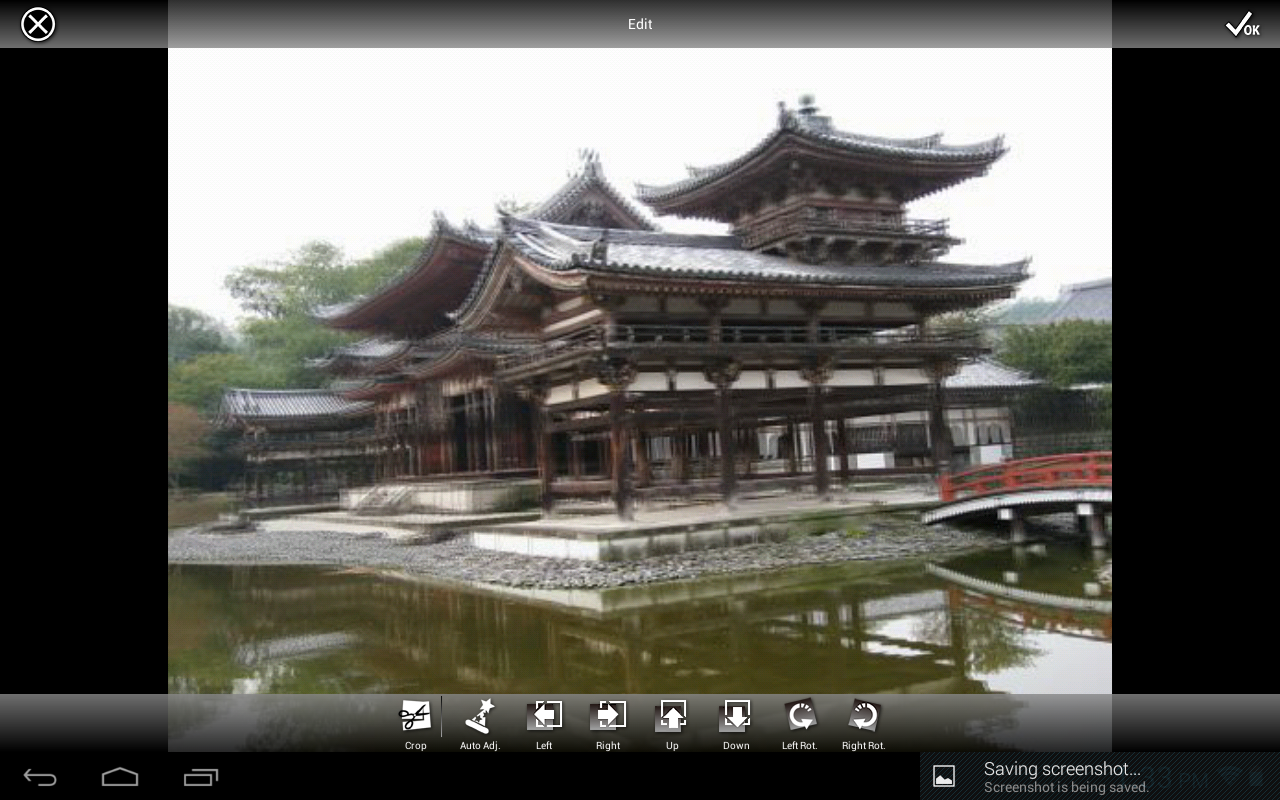

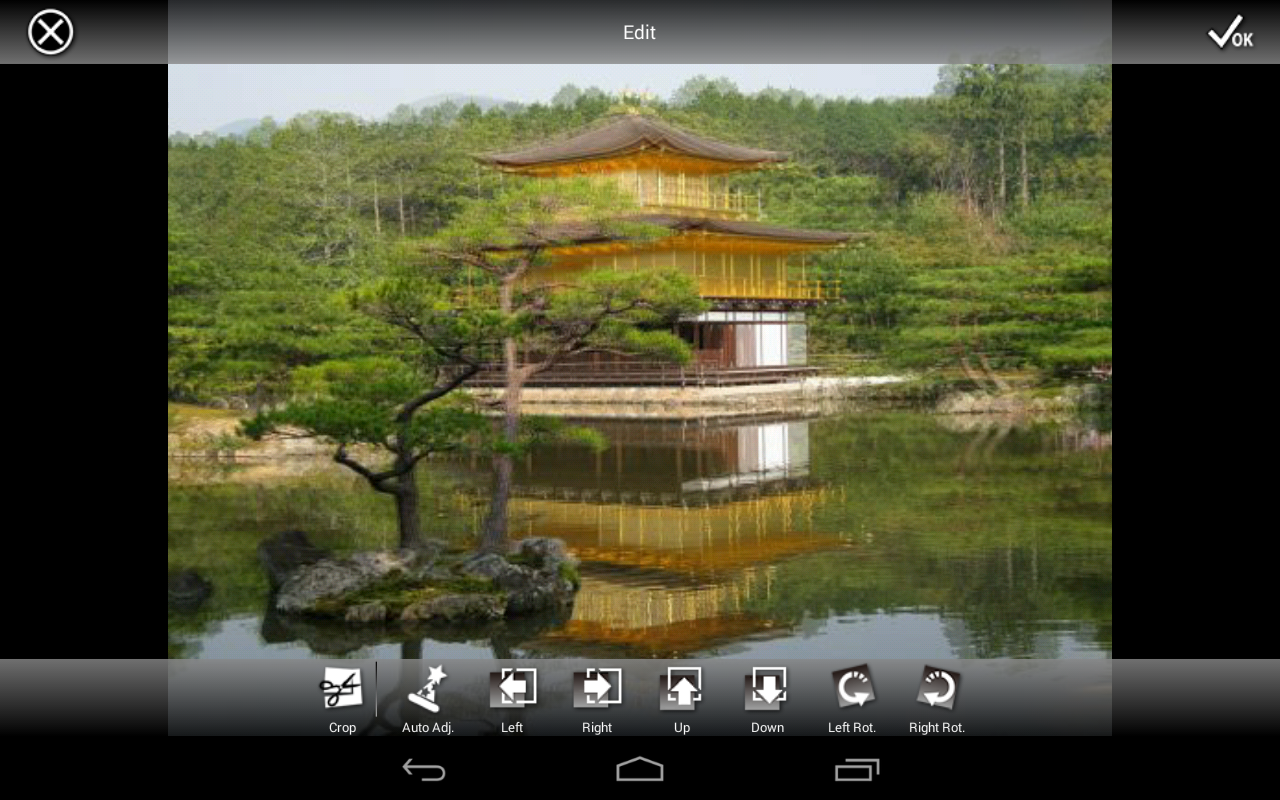

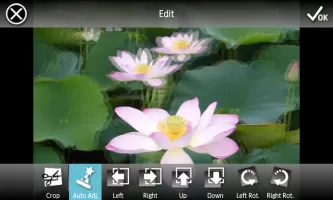

Adjust mode button:Adjust L/R image position and angle with finger scroll.

Swap button:Swap L/R images

Rotation button:Rotate 0/90/180/270 degree

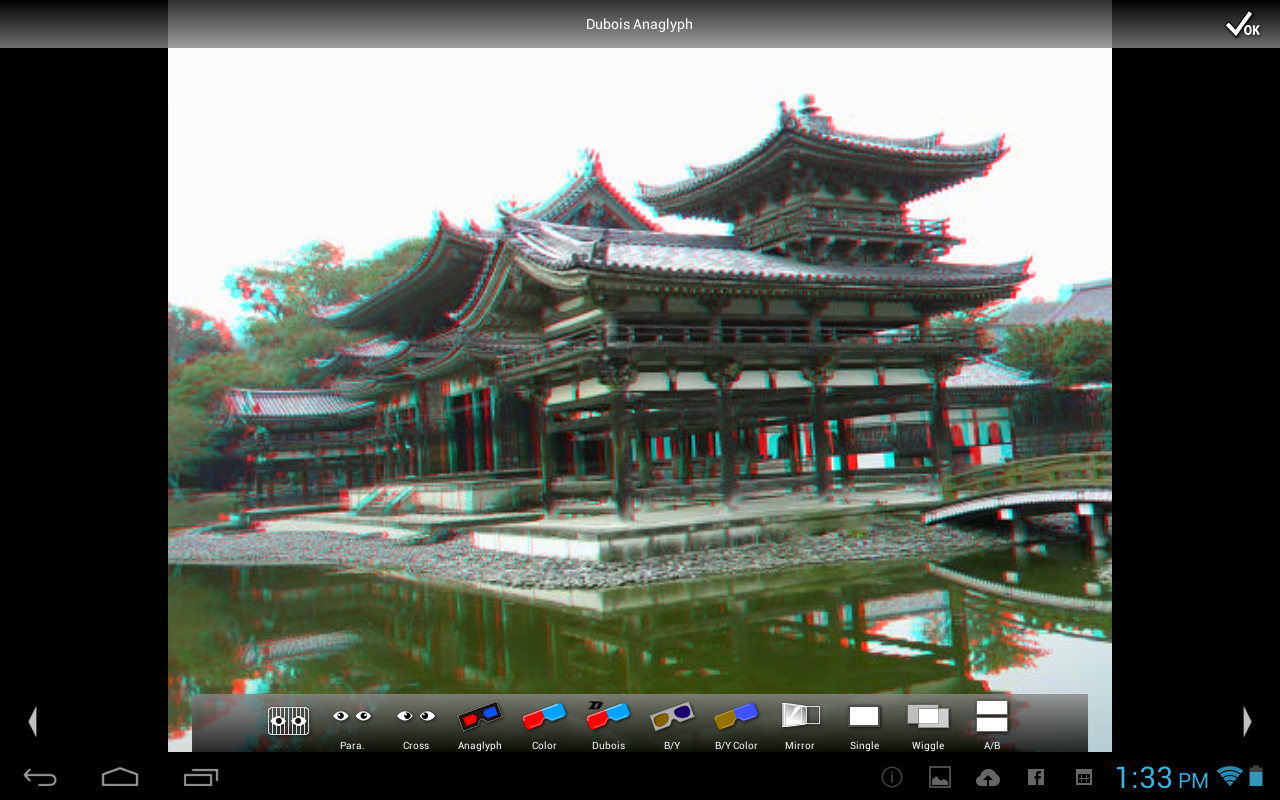

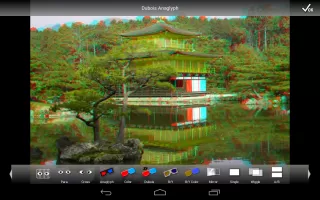

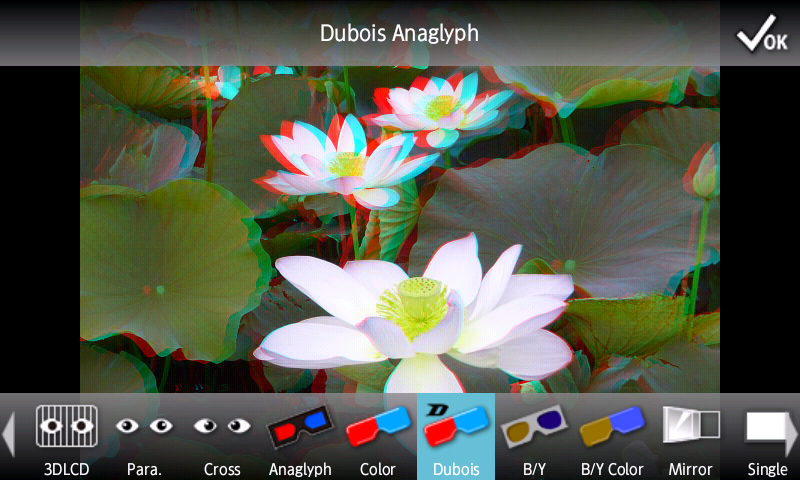

Stereo type button:Select the stereoscopic viewing method.

Camera button:Take L/R pictures with the internal camera.

Slide Show button:Start/Stop the slide show.

Forward button:Show next image

Backward button:Show previous Image

Zoom buttons  Image zoom in/out

Fit button  Fit to screen size(100%)

Steps to use

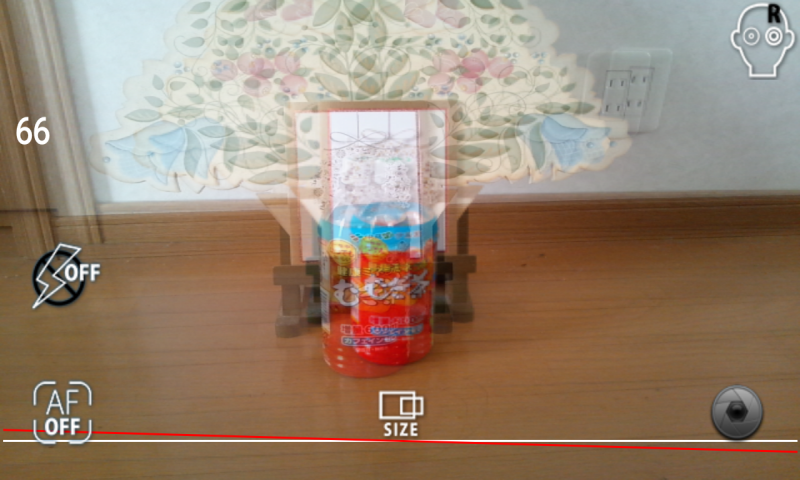

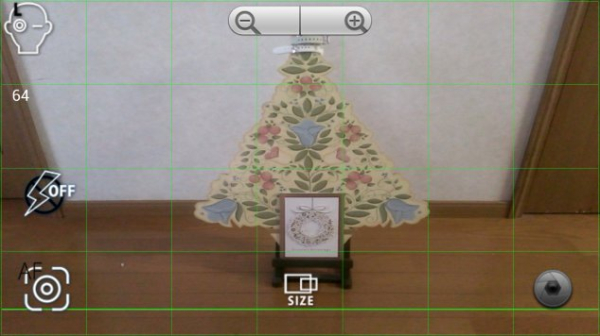

Take Left Image

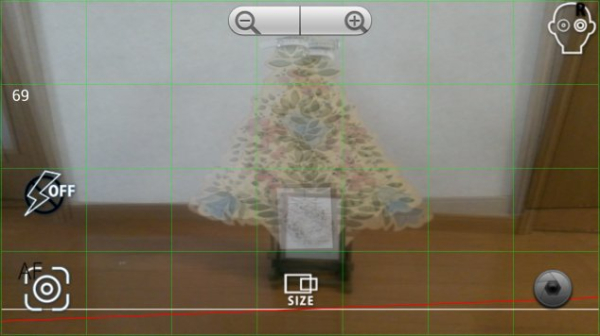

Take Right Image

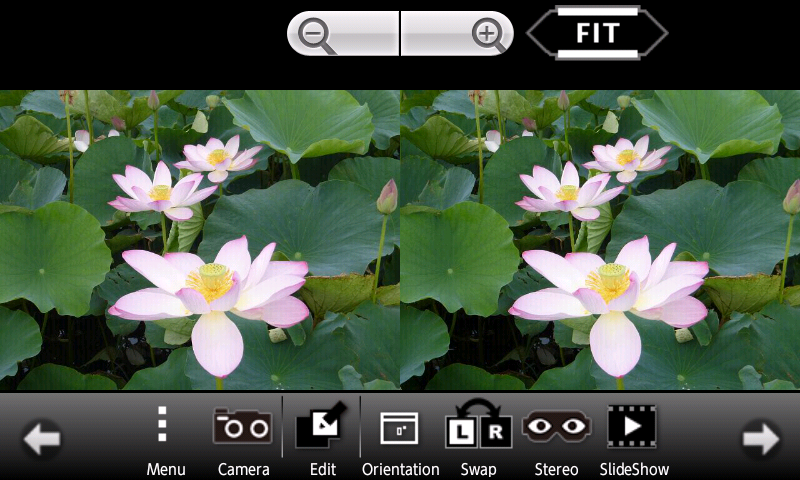

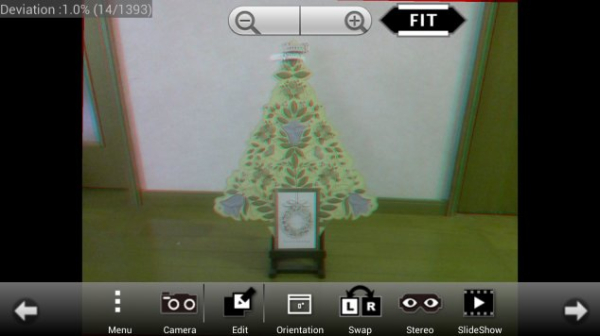

Show Stereo Image

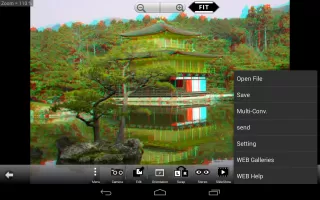

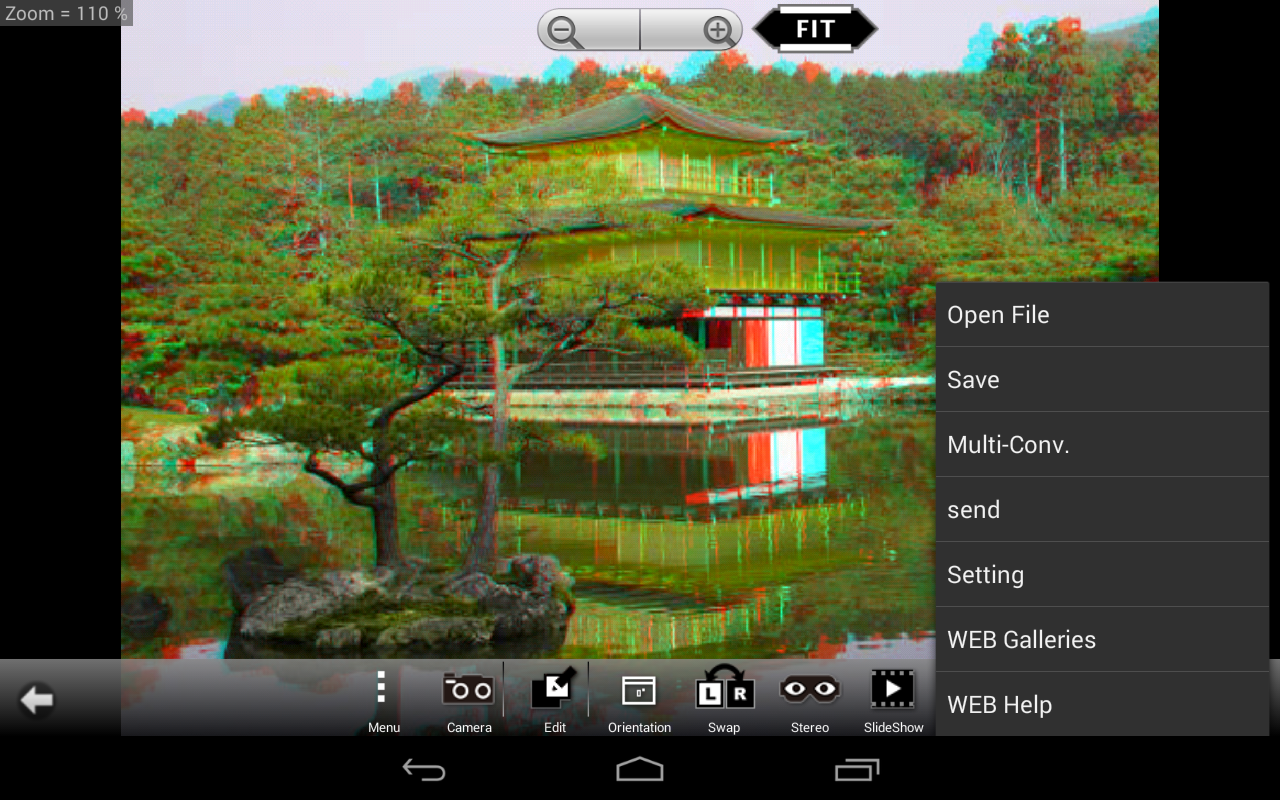

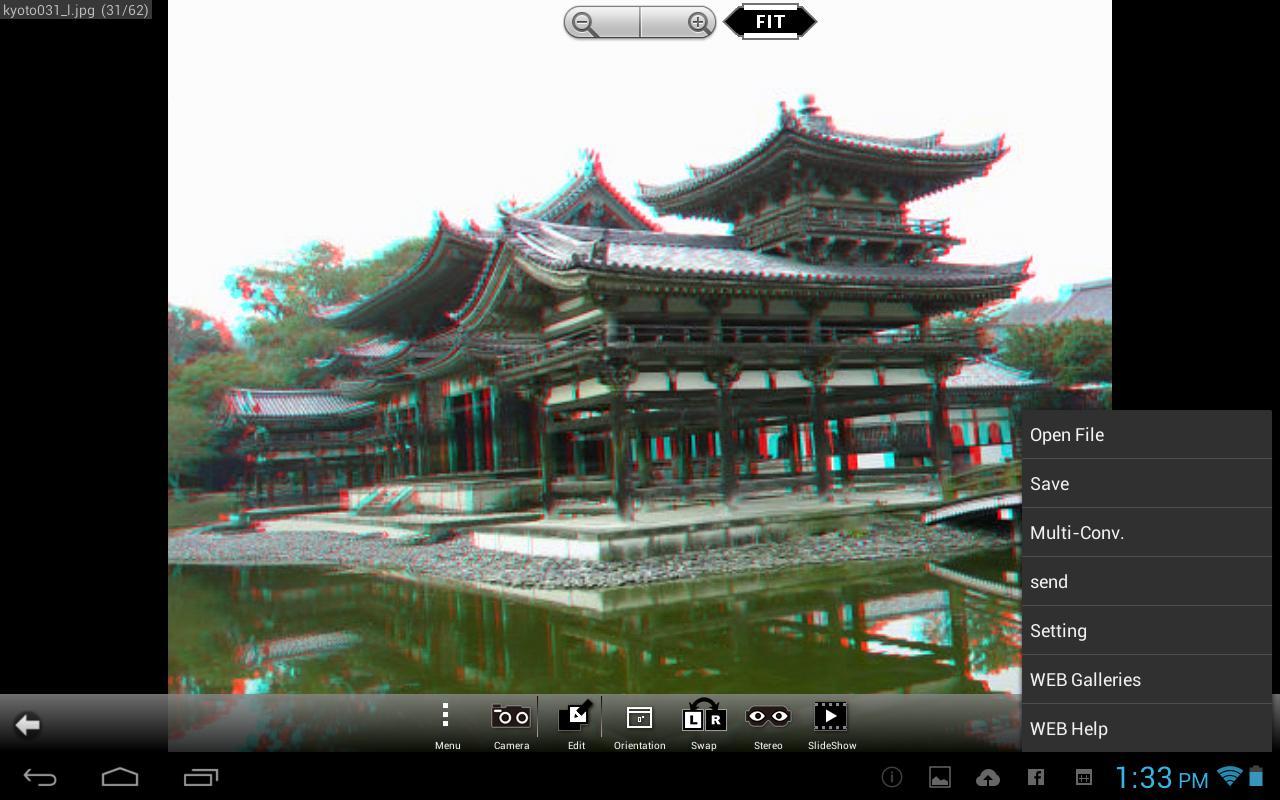

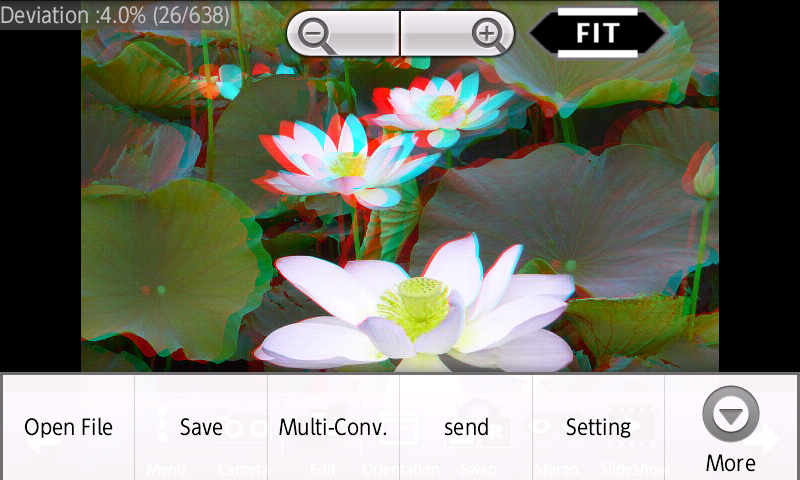

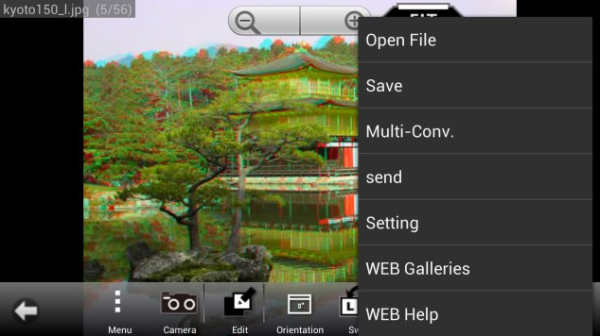

[Menu]

Press [menu] button of your Android.

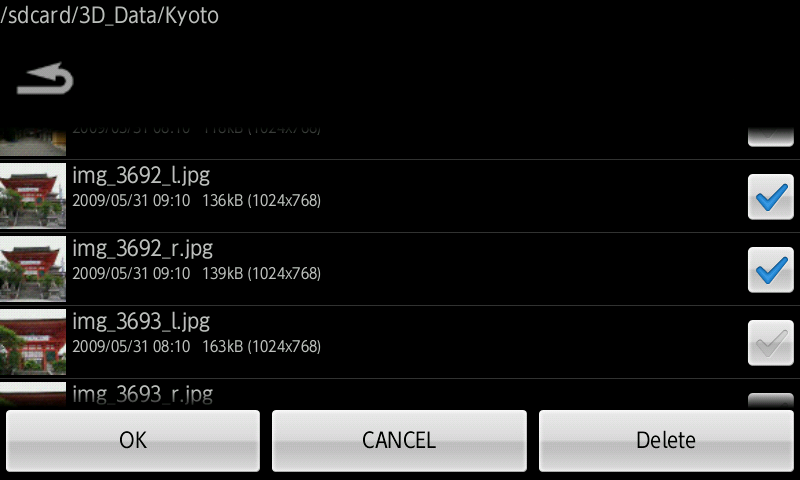

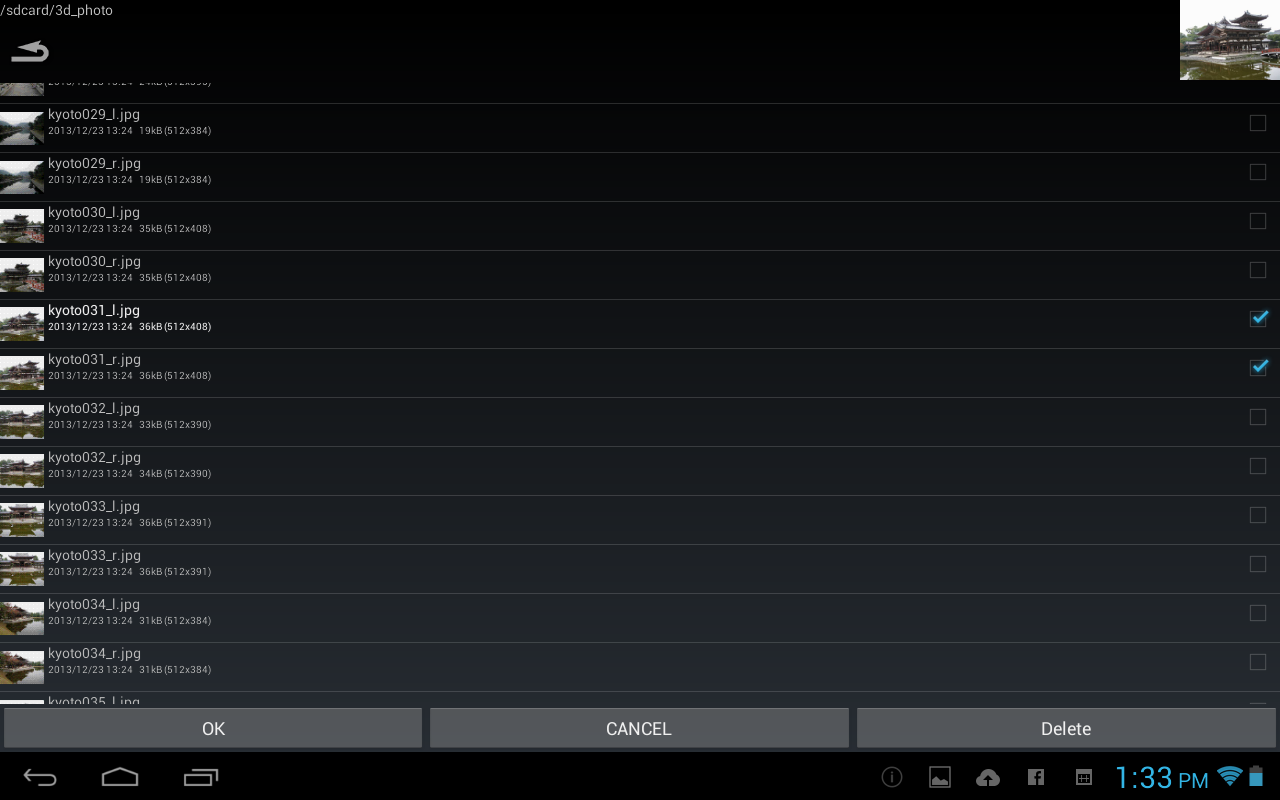

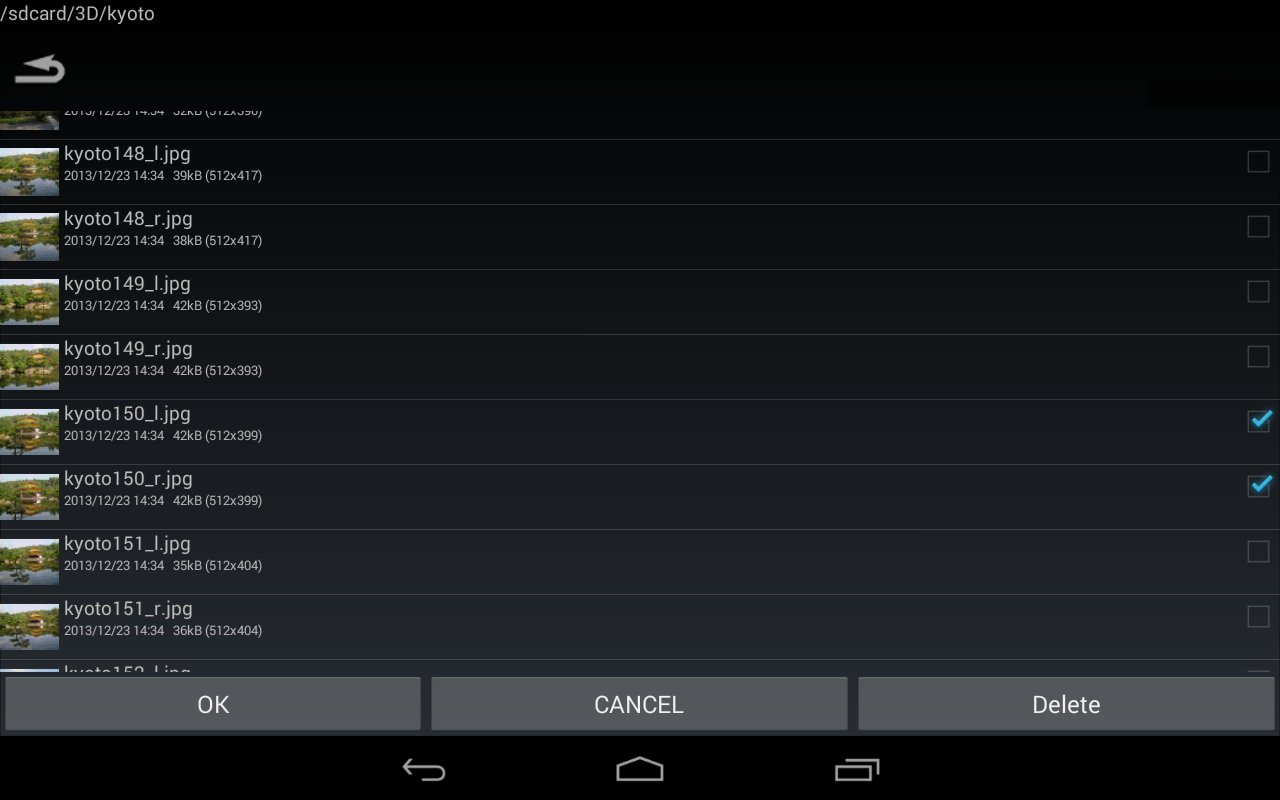

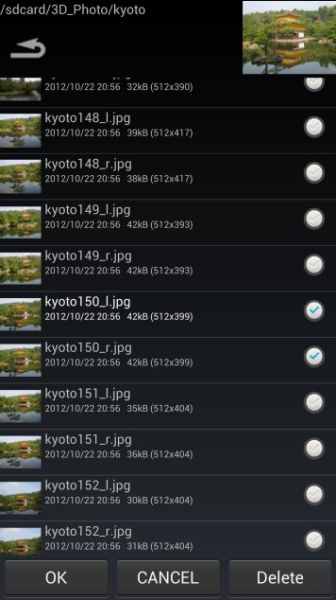

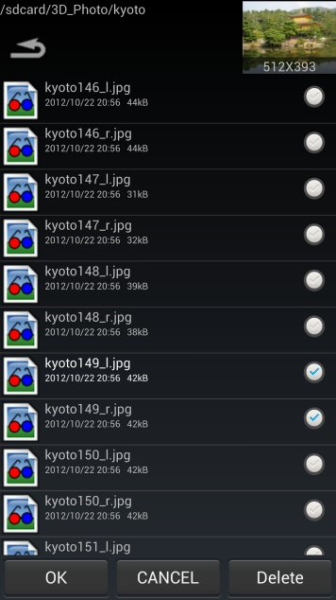

Open file

Open file-select dialogue

Check L/R image files or Single SBS stereo image file, then click OK button.

From Ver1.00, you can find the delete button.

Check the files, then click Delete button.

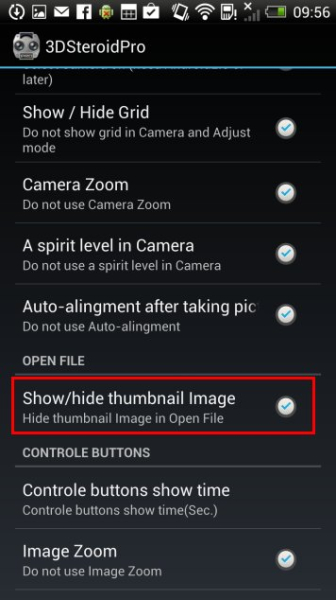

If you check 'Show/hide thumbnail Image', you can see thumbnail images of each image files.(Pro Version only)

->

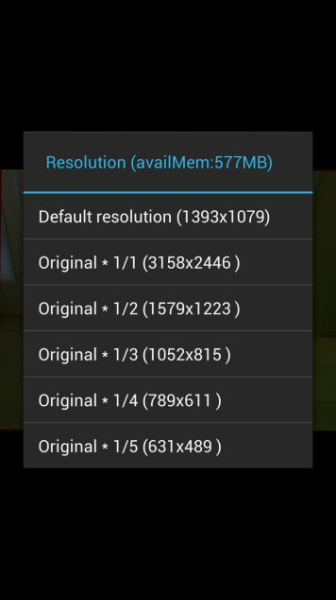

Save

Save the displayed image, then launch the mailer if you have set it.

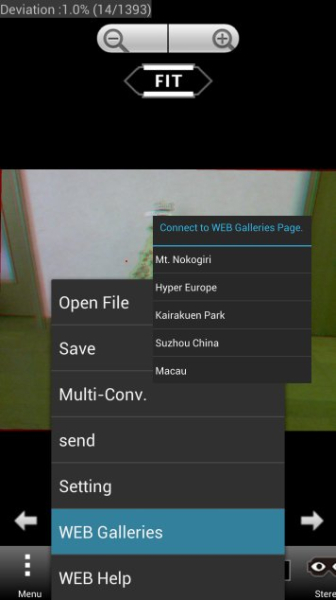

WEB Galleries

Please enjoy my WEB Galleries!

Important

--We can not use the large memory space in each android applications.

--If we use high resolution images (greater than screen resolutions) , we have an 'out of memory' problem.

--So, '3DSteroid' uses screen resolutions for left and right images and saving the image.

--If you have any problem with 3DSteroid, please send me your information by email.

--I can not correct the problem from Android Market comments.
