SchemataCAD viewer DWG/DXF - View & manage CAD files

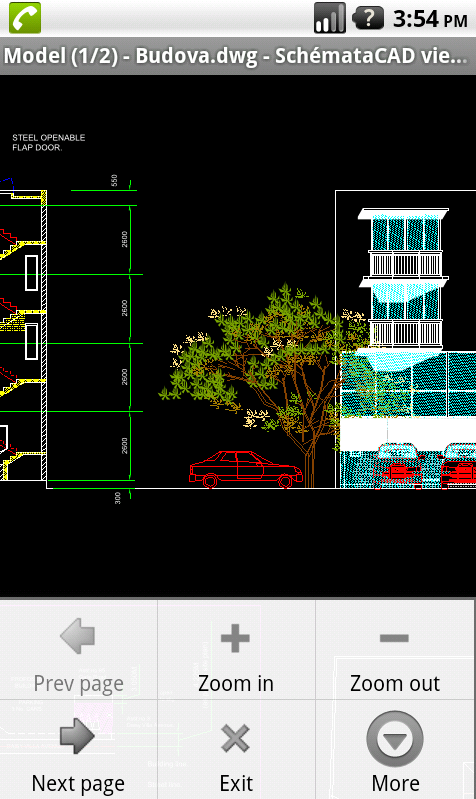

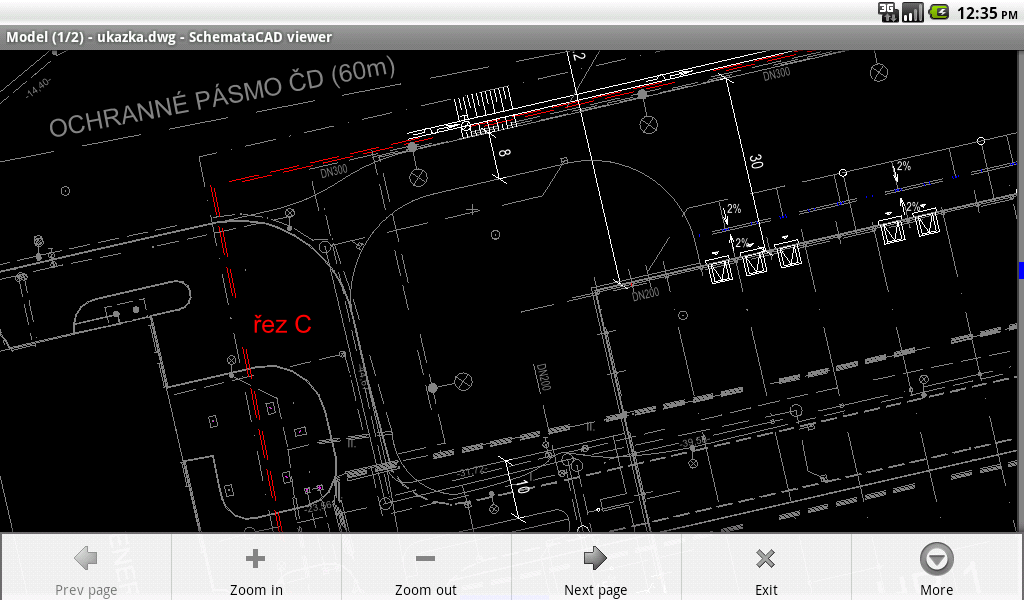

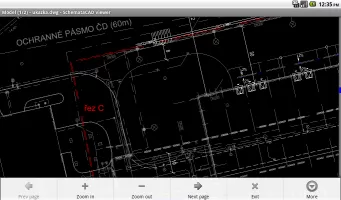

The SchemataCAD viewer allows users to effortlessly access 2D CAD drawings saved on their tablets or mobile devices. It also facilitates the opening of drawings directly from email attachments, web pages, or through a file manager.

The viewer supports various CAD file formats:

- DWG (compatible with versions up to 2022 - AC1032)

- DXF (all versions)

- DGN (limited to older format V7)

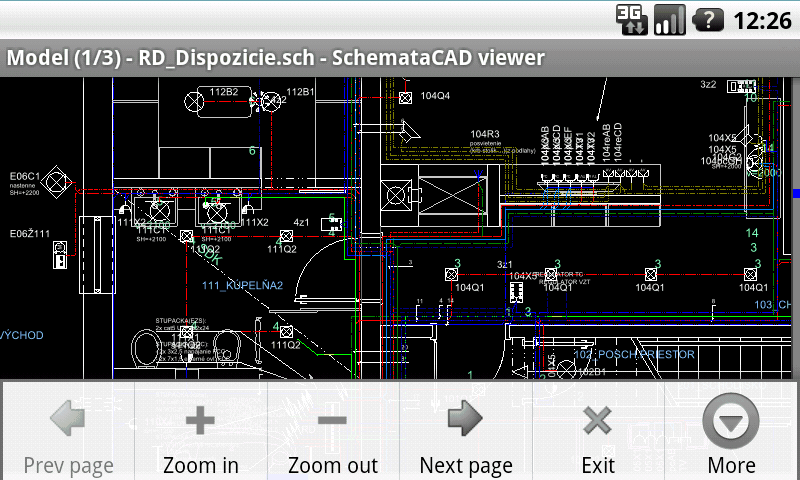

- SCH (proprietary format of SchemataCAD)

- Additional formats include: EMF, PNG, BMP, JPG

The viewer includes some standard AutoCAD SHX fonts and can accept other SHX (or SHP) fonts or shapes as well. When opening SHX or SHP fonts, the viewer prompts users to copy the necessary font into its operating folder:

/sdcard/Android/data/com.elmer.SchemataCAD_viewer/files/fonts

Limitations include:

- Inability to open encrypted DWG files

- Limited available memory may restrict the opening of very large drawings, such as files sized 20MB.

- Support for SHX "Big fonts" (Japanese, Korean, Chinese) is unavailable

- External references are not supported

This viewer is part of the CAD software called SchemataCAD.

SchemataCAD viewer DWG/DXF FAQ

1. Why can't I install SchemataCAD viewer DWG/DXF?

The installation of SchemataCAD viewer DWG/DXF may fail because of the lack of device storage, poor network connection, or the compatibility of your  Android device. Therefore, please check the minimum requirements first to make sure SchemataCAD viewer DWG/DXF is compatible with your phone.

2. What's the file size of SchemataCAD viewer DWG/DXF?

SchemataCAD viewer DWG/DXF takes up around 1.1 MB of storage.

3. Is SchemataCAD viewer DWG/DXF free to download?

Yes, SchemataCAD viewer DWG/DXF is free to download. And it does not contain in-app purchase.
